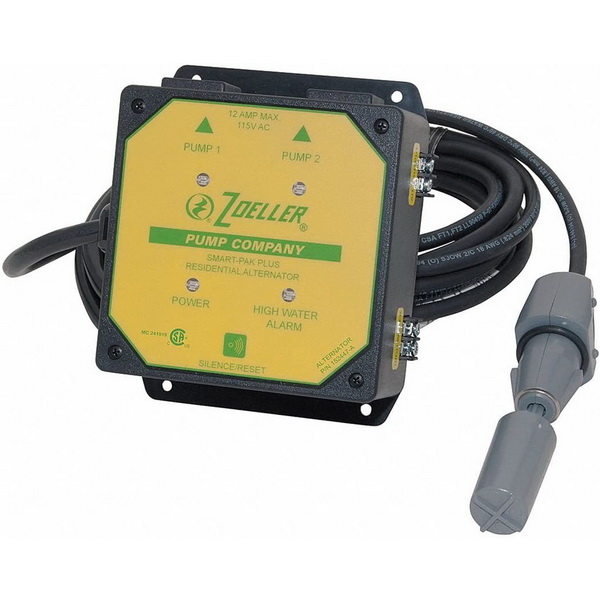

Zoeller 10-0804 Smart Pak Plus Sump Pump Control Panel

Zoeller 10-0804 Smart Pak Plus residential sump pump alternator. This control panel is wall-mounted and contains relays, switches, and breakers for controlling the start and stop cycling of sump and sewage pumps and attached alarms. Allows you to install two automatic pumps up to 1/2 HP and alternate their use by connecting the built-in auxiliary contacts to a Z Control Gateway or A-Pak, where users can receive alerts via email, text, and push notifications.

Features

• Alternates two automatic pumps up to 1/2 HP, 12 Amps each, 115 V single phase (not to be used with Model 63 or Model 95 pumps or with any model grinder pumps)
• Compact design easily mounts in confined spaces
• Extends pump life
• Circuit fault protection
• Specially designed for humid areas like basements
• Universal connection for alarm switch replacement
• Auxiliary output contacts (normally open) for remote alarm connection
• Connect to input terminals on either the Z Control A-Pak or Gateway and receive alarm notifications via email, text, and app push through the Z Control Cloud.
• Solid green LED lights for Pump 1 and Pump 2 and Power
• Flashing red LED lights for alarm conditions
• Built-in, rechargeable battery
• 9' power cord
• 2 year limited warranty

Alarms

• Multiple alarm modes will alert user to potential problems and protect property by switching to the other pump when necessary
• High water alarm operation
• Loss of power alarm operation
• Continuous pump run alarm operation
• Breaker tripped alarm operation
• Pump failure alarm operation
• Built-in rechargeable battery will operate the alarm and LED lights for a limited time during power outage
• Button for Silence and Reset
• Receive alarms through Z Control Cloud
