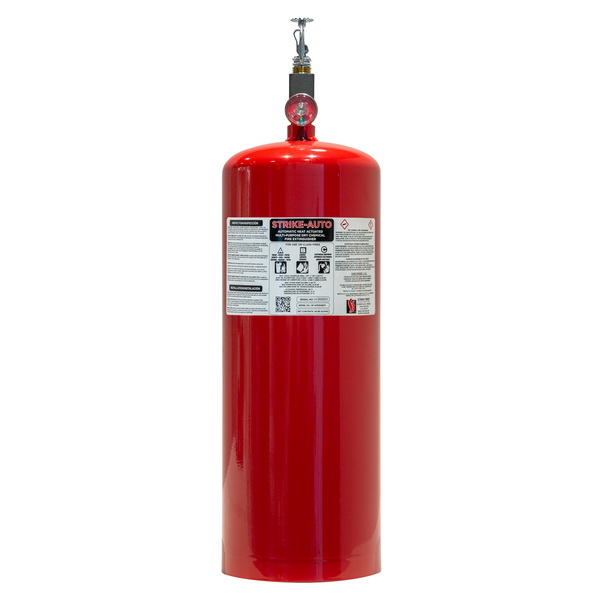

Strike First 20 lb. ABC Automatic Fire Extinguisher, Vertical

CODE: 1110-SF-AFE20ABCV


Price: $584.99

In stock

Heat-activated automatic spot protection fire extinguisher by Strike First. Part Number SF-AFE20ABCV. Vertical Mount. Charged with 90% ABC multi-purpose dry chemical agent effective on Class A, Class B, and Class C fires. Can be used on local spot and total flood applications.

Note: Mounting bracket HDVB-3 sold separately.

Features:

  • Heat actuated using UL-Listed sprinkler head, rated at 165°F (74°C).
  • Disposable, does not require 6-yr or 12-yr maintenance and inspection. Discard after discharge or 12 years. Non-Refillable.
  • Cylinder designed and tested to meet US DOT requirements.
  • Designed to provide supplementary fire protection - not as a substitute for an engineered system.
  • Typical installation locations: Specific fire risk areas such as flammable liquid storage rooms, construction trailers, and manufacturing process areas such as paint booths.
  • Available in two mounting styles: Vertical and Horizontal. Each mounting style requires specially-designed heavy-duty mounting brackets.
  • Desgined and manufactured in Canada.



Technical Data Sheet (PDF): Strike First Automatic File Extinguishers



Agent Type:
ABC multipurpose dry chemical
Agent Capacity: 20 lb. (9.1 kg)
Ship Weight: 32 lbs. (14.5 kg)
Operating Pressure: 195 psi (1344 kPa)
Storage Temperature Range:
-65°F to 120°F (-54°C to 490°C)
Unit Length: 24.5 in. (62.2 cm)
Unit Diameter: 7.2 in. (18.3 cm)
Max Total Flood Valume: 2184 cu. ft.
Max Local Application Coverage Area:
12 ft. x 13 ft.
Max Height Above Hazard - Local Application:
4 ft.
Max Height Above Hazard - Flood Application: 14 ft.
Optional Bracket: HDVB-3
