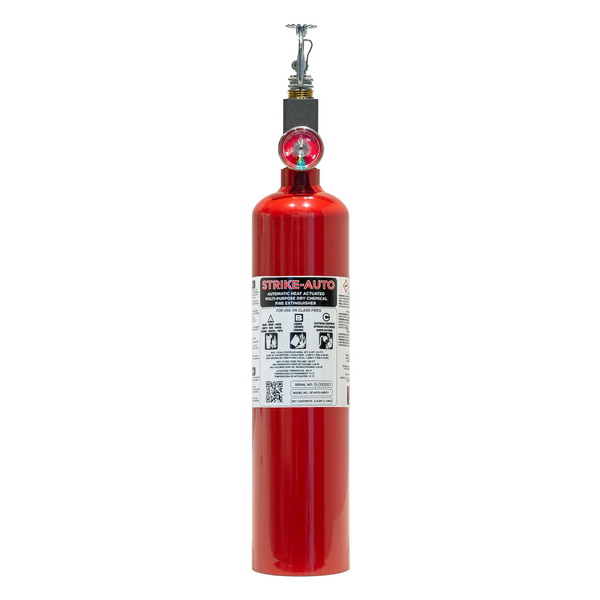

Heat-activated automatic spot protection fire extinguisher by Strike First. Part Number SF-AFE2.5ABCV. Vertical Mount. Charged with 90% ABC multi-purpose dry chemical agent effective on Class A, Class B, and Class C fires. Can be used on local spot and total flood applications.
Note: Mounting bracket sold separately. Choose from UB2, UP2-DB.
Features:
- Heat actuated using UL-Listed sprinkler head, rated at 165°F (74°C).
- Disposable, does not require 6-yr or 12-yr maintenance and inspection. Discard after discharge or 12 years. Non-Refillable.
- Cylinder designed and tested to meet US DOT requirements.
- Designed to provide supplementary fire protection - not as a substitute for an engineered system.
- Typical installation locations: Specific fire risk areas such as flammable liquid storage rooms, construction trailers, and manufacturing process areas such as paint booths.
- Available in two mounting styles: Vertical and Horizontal. Each mounting style requires specially-designed heavy-duty mounting brackets.
- Desgined and manufactured in Canada.
Technical Data Sheet (PDF): Strike First Automatic File Extinguishers
Agent Type: |
ABC multipurpose dry chemical |
Agent Capacity: | 2.5 lb. (1.13 kg) |
Ship Weight: | 5 lbs. (2.3 kg) |
Operating Pressure: | 100 psi (689 kPa) |
Storage Temperature Range: |
-65°F to 120°F (-54°C to 490°C) |
Unit Length: | 17.5 in. (44.4 cm) |
Unit Diameter: | 3.2 in. (8.13 cm) |
Max Total Flood Valume: | 120 cu. ft. |
Max Local Application Coverage Area: |
4 ft. x 4 ft. |
Max Height Above Hazard - Local Application: |
4 ft. |
Max Height Above Hazard - Flood Application: | 7.5 ft. |
Optional Bracket: | UP2, UP2-DB |
