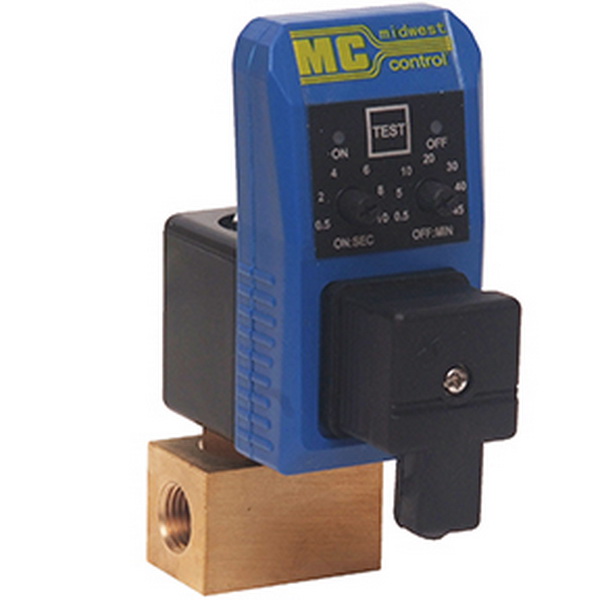

Midwest Control MCDV25 1/4" Condensate Drain 115V 230 PSI

Condensate drains are an essential component for all compressed air systems. Compressor systems which do not properly drain the condensate can cause damage to components. Idea for use on air receivers, filter, dryers separators and drip legs.

Features:

• UL and CE approved
• Construction: Forge brass body, 4.5mm orifice
• Solid state timer
• Adjustable interval time: 0.5 to 45 minutes
• Adjustable discharge time: 0.5 to 10 seconds
• Manual test switch
• Operating temperature: 34° F to 140° F
• IP 65 NEMA 4 rated
• Yellow LED on - off lights
• Housing: ABS fire resistant
• Can be mounted in any position
• Includes BABC self-cleaning drain kit
• Includes 6 ft power cord
• Inlet and outlet connection: FNPT
• 1 Year manufacturer warranty
