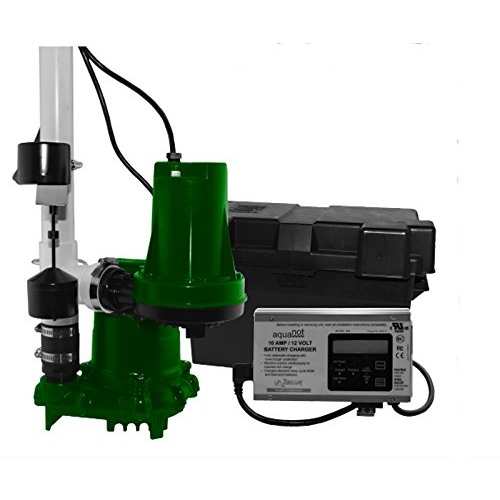

Zoeller 508-0006 Aquanot 508 Sump Pump System w/ Battery Backup

Zoeller Aquanot 508 (508-0006) Pro Pak 53 Factory preassembled combination M53 Sump Pump and Aquanot 508 12-Volt Backup System

Includes Model 508 Aquanot, 12 Volt DC backup system with Model 53 12-volt pump, check valve, float switch and piping.

Features:

PUMP:

• Zoeller Model M53: 3/10 HP, Pumps 2040 Gallons per hour (10 ft. Head)
• 12 V, highly-efficient, non-corrosive pump construction. Supplied with 6' (1.8 m) leads.
• NOT a Bilge pump. Designed, Engineered and Assembled by Zoeller as a sump pump
• Integrated check valve
• Legs allow free-standing installation
• Quick disconnect discharge
• Aluminum seal pocket and cooling plate
• Hand-built and 100% tested in the USA
• Efficient design means more water pumped during emergencies

CONTROL BOX: Includes battery burn-out and overcharge protection. The self-contained, 10 amp battery recharger system is a solid-state, automatic controller with alarms, light indicators and warning systems.

LCD SCREEN: Always displays battery voltage along with other helpful information about the system.

LED LIGHT INDICATORS:

• AC Power - blinks red when power is out
• Charged - green indicates battery is fully charged
• Charging - yellow indicates power is going to battery
• Low Battery - red light blinks when below 10.8 volts and rapidly blinks when below 8.4 volts
• High Water - yellow light will blink when the float is activated, and becomes solid after 3 seconds
• Alarm Off - yellow light indicates the buzzer is currently silenced

ALARMS:

• High Water
• Reverse Polarity
• Low Battery

BUTTONS:

• Scroll - display information on the system such as DC pump cycles and power outages
• Alarm Reset - press to reset alarms. Press and hold for three seconds for 24-hour buzzer silence

AUXILIARY ALARM CONTACT: A set of dry contacts allows system to connect to home security alarm, auto dialers, etc.

SWITCH: Reliable, low voltage vertical float switch

BATTERY CASE: The included battery case will accommodate maximum battery dimensions of 13" L x 7½" W x 9½" H (33 cm L x 19 cm W x 24 cm H) and fits all group size 27, 29 and 31 batteries. Made from non-corrodible polyethylene. To use multiple batteries, order extra battery case with hook-up wire (P/N 007861). BATTERY IS NOT INCLUDED.

FITTINGS: An integrated DC pump discharge check valve, additional AC pump check valve, tee, and adapter are included.

TECHNOLOGY: This charger uses the latest switch mode technology available. This allows for an extremely efficient charger in a compact design. It satisfies the rigid California Battery Council standards. Charger is also cURus approved.
