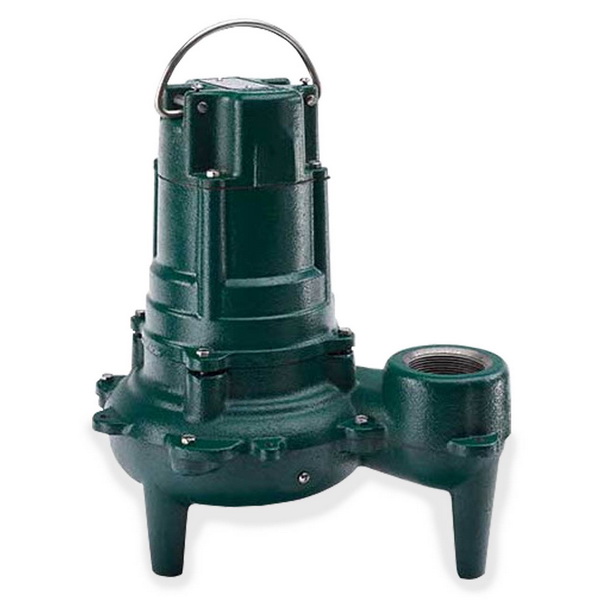

Zoeller 267-0041 G267 Waste-Mate Sewage Pump 1/2 HP 460V Non-Automatic

Zoeller G267 (267-0041) Submersible sewage/effluent or dewatering pump.

The "Waste-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater, effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2" (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!

Features:

• Non-Automatic Model - Requires Float Switch
• Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
• Cast iron base
• Non-Clogging Vortex Impeller Design
• Engineered plastic impeller with metal inserts on models 266, 267 & 268 (1 PH). Model 267 available with cast iron impeller option. (Cast iron impeller standard on 3 PH models.)
• Not effected by materials normally found in drainage and sewage pumps
• Stainless steel screws, bolts, handle, guard and arm and seal assembly
• Neoprene square ring & gasket
• Oil-filled, hermetically sealed motor
• Oil lubricated bearings
• Carbon and ceramic shaft seal
• Passes 2" spherical solids
• 2" female and 3" NPT male discharge
• On point: 12" (automatic units)
• Off point: 4" (automatic units)
• Corrosion resistant powder coated epoxy finish
• Completely submersible
• Watertight and dust tight
• BN and BE267 model pumps available packaged with a piggyback variable level float switch
• Non-Automatic Model
• Automatic reset thermal overload protection (1 Phase only)
• 460V, 3-Phase

Consult factory for special applications:

• Minimum recommended basin size (small load applications): simplex 18" x 30", duplex 30" x 36"
• High water alarms available
• Standard 267 model: 47.5 lbs, 1/2 HP
