Zoeller 264-0001 M264 Waste-Mate Sewage Pump 4/10 HP 115V Automatic

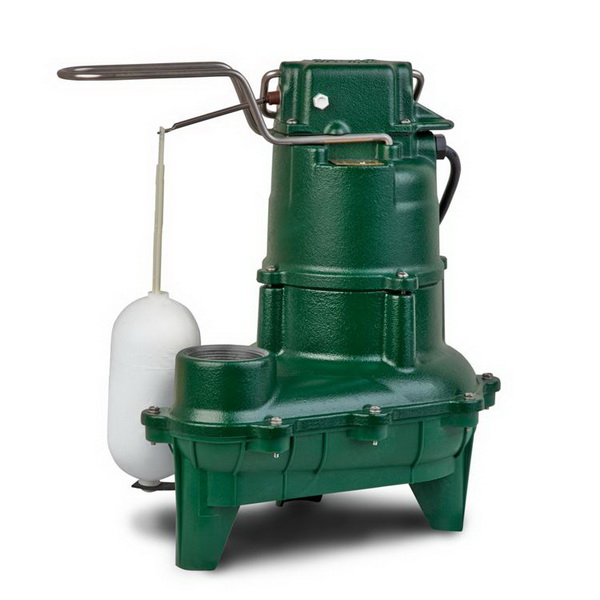

Zoeller M264 (264-0001) Submersible sewage/effluent or dewatering pump.

This series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2" (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!

Features:

• Automatic model
• Float operated, submersible (NEMA 6) 2 pole switch
• Durable cast iron construction - switch cap, motor and pump housing
• Engineered plastic base
• Stainless steel screws, bolts, handle, guard, arm and seal assembly
• Corrosion resistant powder coated epoxy finish
• Hermetically sealed, automatic reset thermal overload protection
• Upper and lower sleeve bearings running in bath of oil
• Carbon and ceramic shaft seal
• 10 ft. UL listed, 3-wire cord and plug
• Passes 2" spherical solids
• 2" NPT discharge
• On point: 12-1/2"
• Off point: 4-1/2"

Consult factory for special applications:

• Electrical alternators for duplex systems available with variable level float switches
• Minimum recommended basin size simplex: 18" x 30", duplex: 30" x 36"
• Standard automatic - 0.4 HP, 34.5 lbs.
• High water alarms available
• Mechanical alternators available for duplex systems
