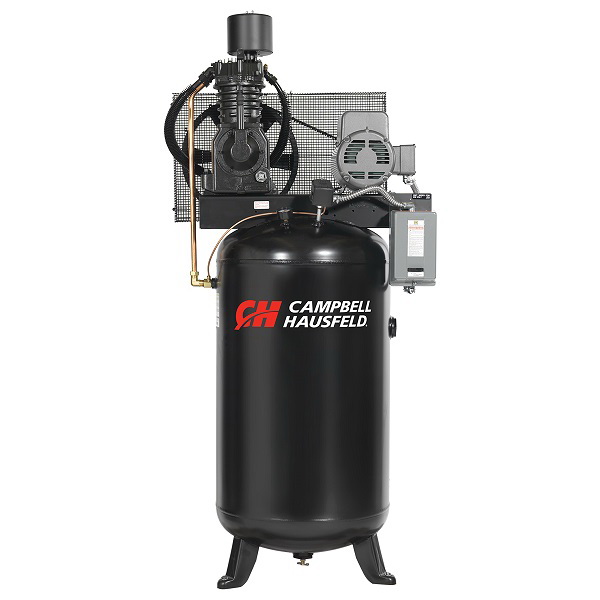

Campbell Hausfeld CE7001 Vertical Air Compressor 7.5 HP 80G 230V/3PH

This 7.5 HP, 80 gallon vertical two-stage compressor is ideal for auto repair facilities and tire repair outlets. It includes a long-life cast iron two-stage pump, designed with over 17,000 hours of rated life. (based on B-10 bearing rating) The head and valve plate feature an advanced design with Viton(r) high temperature o-rings for leak-proof sealing. Viton o-rings provide superior high pressure sealing compared to paper-type gaskets. Also, the crankshaft is fabricated of ductile iron and optimally balanced for smooth, low vibration operation.

Features:

• ASME certified tank for 200 PSI maximum pressure
• Mounted and wired motor starter for quick electrical hook up
• Industrial-rated NEMA motor for reliable service
• Fully enclosed metal belt guard for safe operation
• Pressure switch for automatic start stop operation
• CFM @ 90 PSI: 25
• CFM @ 175 PSI: 24.3
• Pump RPM: 1020
• Voltage: 208-230/460 Volts
• Phase: 3
• Continuous Duty: No
• 3 year limited warranty
